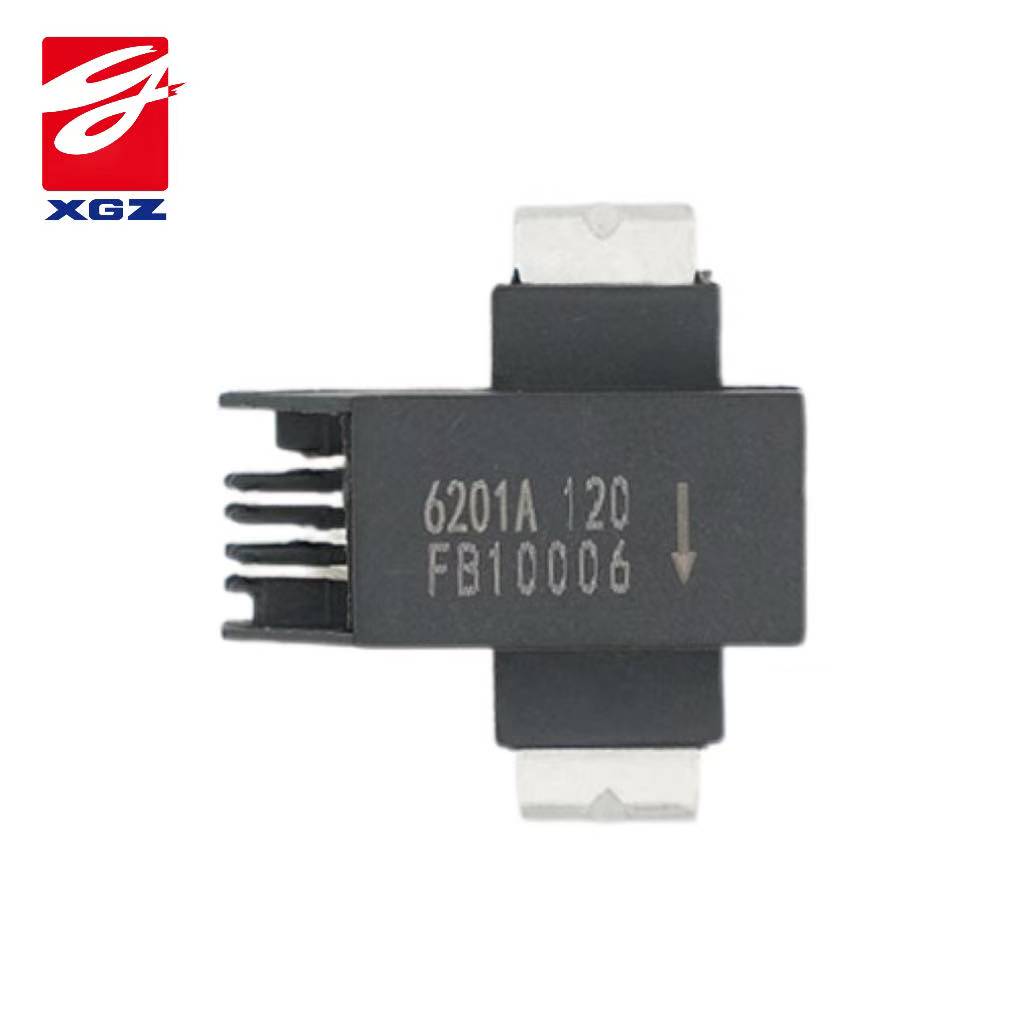

Sencoch GZC6201：HLSR-P Current Sensor Alternative for AC/DC Current Detection
Product Description
The GZC6201 product line is an open-loop current sensor based on the principle of Hall effect. The product can be widely used in AC or DC current detection in industrial, commercial and communication systems. Each GZC6201 is composed of a high-precision, low-temperature drifting linear Hall IC, a magnetic core and a built-in low-insertion resistance current conductor path. The additional current flowing through the path of this low-resistance current conductor will generate a magnetic field, and the Hall IC will convert it into a voltage signal output proportional to the input current. Due to the use of a magnetic core inside the product, it can effectively suppress the interference of the external common-mode magnetic field on the product and improve the accuracy in the magnetic noise environment.
Product Features
Typical linearity in the full temperature range of ±0.5%
240kHz signal bandwidth
Fast output step response time: 1.8μs
5.0VDC power supply
-40℃~105℃ working temperature
Rated current detection range: (bidirectional)---±10A~±120A
Detect AC and DC current signals
Fixed output mode unrelated to the power supply
Extremely stable static output voltage
The chip has its own reference terminal output
Application Field
Current detection of medium and low power frequency converter
Motor phase and rail current detection
String photovoltaic inverter current detection, MPPT current detection
Chargers and converters
DC power supply
Overcurrent protection
Uninterruptible power supply (UPS)
