| Sensor Attribute | Attribute Value |

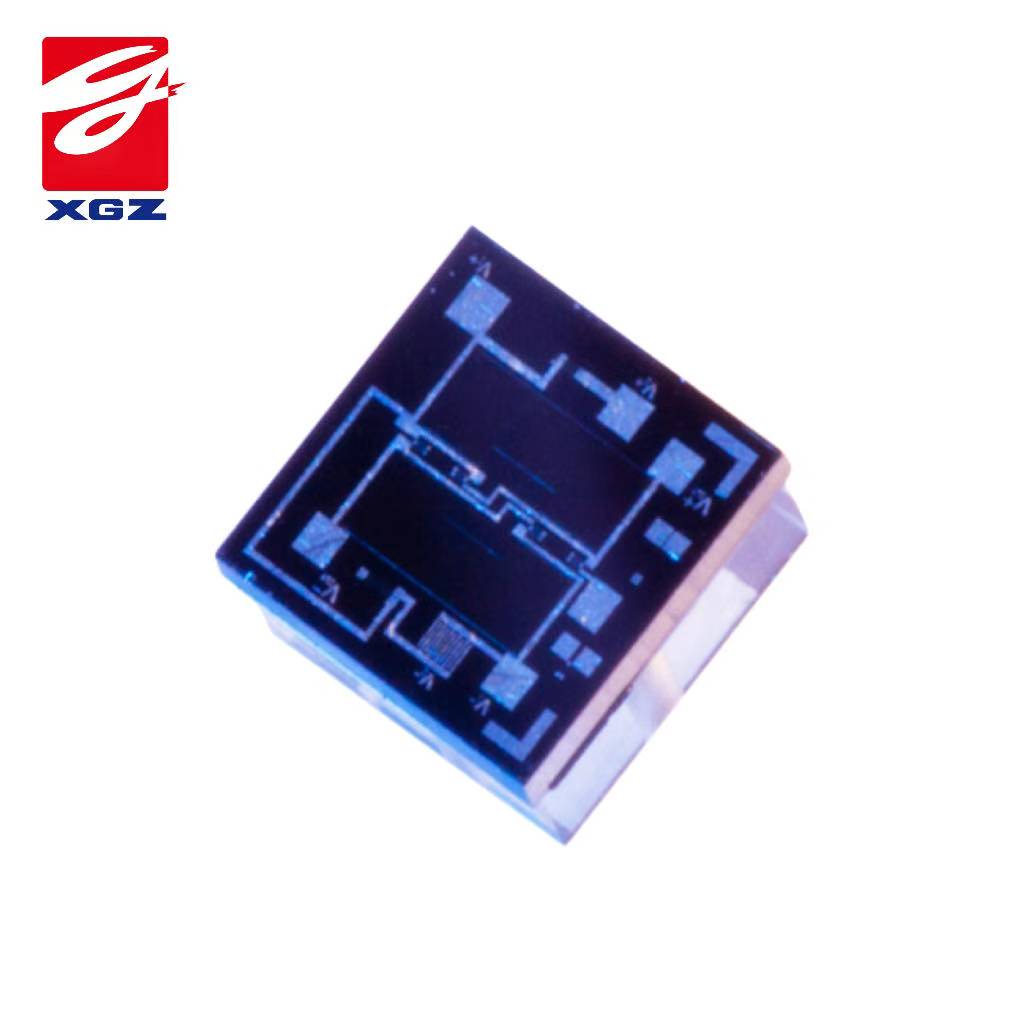

| Product Category | Pressure Sensor Die |
| Product Series | GDP2406 |
| Chip Type | Silicon Piezoresistive Sensor (Absolute Type) |
| Pressure Range | 1000kPa |
| Output Type | Analog mV output |
| Offset Output Value | -20～20mV |
| FS Output Value | -60～120mV |
| Bridge Resistance | -4 to 6KΩ |
| Power Supply | ≤15V or ≤3mA |
| Operating Temperature | -40 to 180°C |
| Die Size(L*W*H) | 2.4x2.4x0.62mm(including Scribe Line 100μm) |
| QTY/Wafer | 2090pcs/6''Wafer |
