| Sensor Attribute | Attribute Value |

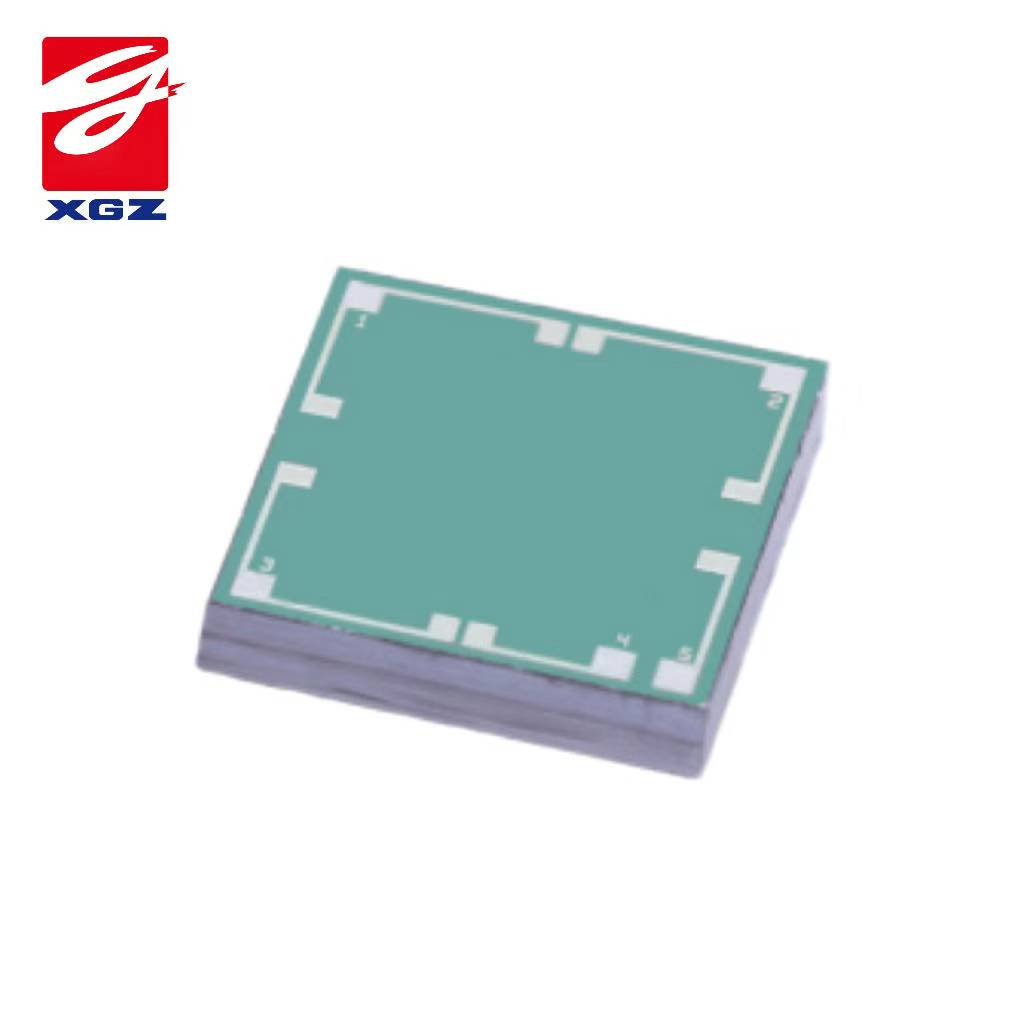

| Product Category | Pressure Sensor Die |
| Product Series | GDP2004 |
| Chip Type | Silicon Piezoresistive Sensor(Gauge Type) |
| Pressure Range | 10/100/200/700kPa |
| Output Type | Analog mV output |
| Offset Output Value | -10～10mV |
| FS Output Value | 40～120mV (Based on pressure range) |
| Bridge Resistance | -4 to 6KΩ |
| Power Supply | ≤15V or ≤3mA |
| Operating Temperature | -40 to 125°C |
| Die Size(L*W*H) | 2.4x2.4x0.38mm(including Scribe Line 100μm) |
| QTY/Wafer | 3500pcs/6''Wafer |
